Micro Encoders


SCA16

Formerly named 2MCA
Diameter: 16 mm
Resolution: up to 5,000 ppr
Shaft: ø 1,5 mm to 4 mm
Temperature: -20° C to 70° C (operating)
IP rating: 50, 65

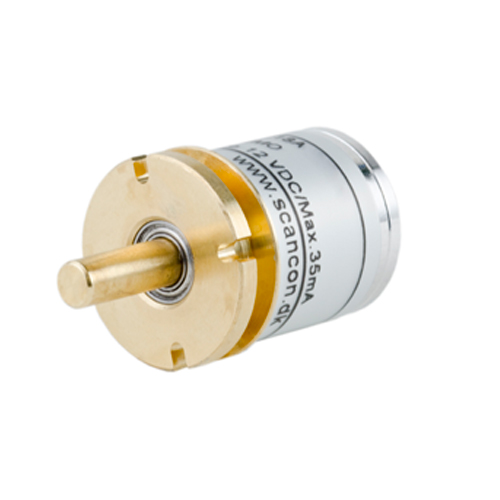

SCA18

Diameter: 18 mm
Resolution: up to 5,000 ppr
Shaft: ø 4 mm
Temperature: -20° C to 70° C (operating)
IP rating: 65

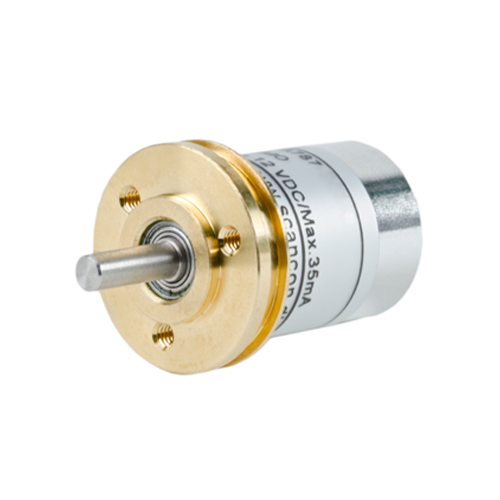

SCA787

Diameter: 0,787 in
Resolution: up to 5,000 ppr
Shaft: ø 1/8 in
Temperature: -20° C to 70° C (operating)
IP rating: 50

SCH16F

Diameter: 16 mm
Resolution: up to 5,000 ppr
Hollow Shaft: ø 1,5 mm to 1/8 in
Temperature: -20° C to 70° C (operating)
IP rating: 50

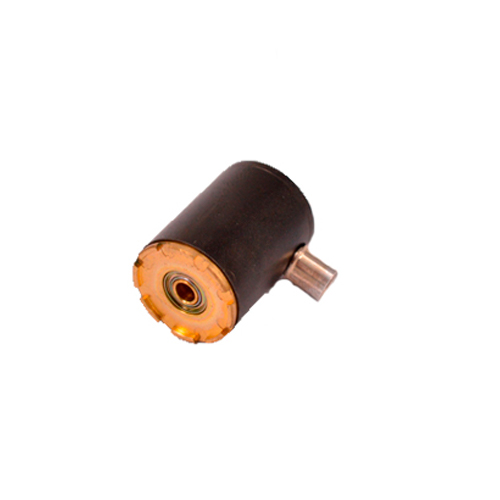

SCH16G

Glue on shaft model
Diameter: 16 mm
Resolution: up to 5,000 ppr
Hollow Shaft: ø 2 mm to 3 mm
Temperature: -20° C to 70° C (operating)
IP rating: 50
