Absolute
Absolute Encoders
Scancon offers a full range of absolute encoders ranging in size from ø24 mm to ø78 mm. Both magnetic absolute (low cost) and optical absolute (high precision) models are available. Our Explosion Proof encoders are available in anodized Aluminum, AISI 303 Stainless Steel, and AISI 316 Stainless Steel. If you do not see an encoder model for your application, contact us and our Design Engineering group will discuss possible encoder solution options.
Mini encoders
| Diameter: | 24 mm to 36 mm | |
| Shaft: | ø 4 mm to ø 1/4 | |
| Hollow Shaft: | ø 3 mm to ø 1/4 inch | |
| Protocol: | SSI, CANopen, Analog Output, BiSS C, Modbus |
Standard Encoders
| Diameter: | 58 mm | |
| Shaft : | ø 6 mm to ø 10 mm | |
| Hollow Shaft: | ø 15 mm | |
| Protocol: | SSI, CANOpen, DeviceNet, EtherCat, ModBus, Profibus, Profinet, Profisafe, Powerlink |

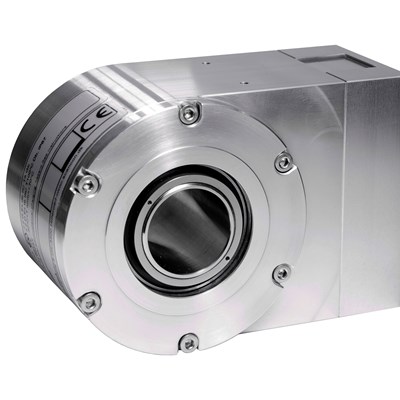

Ex-Proof Encoders
| Diameter: | 68 mm up to 108 mm | |
| Shaft: | ø 10 mm | |
| Hollow Shaft: | ø 14 mm up to 1 1/4 in | |
| Protocol: | Analog, SSI, CANopen, DeviceNet, EtherNet/IP, ModBus, Profibus, Profinet, Profisafe |
Ex-proof Encoders - Mining
| Diameter: | 78 mm | |
| Shaft: | ø 10 mm | |
| Hollow Shaft: | ø 14 mm | |
| Protocol: | Optical – SSI, Profibus, CANopen, DeviceNet |
Heavy Duty Encoders
| Diameter: | 60 mm square - ø 68 mm | |
| Output: | 0 to 20 mA or 4 to 20 mA | |
| Shaft : | ø 12 mm to ø 19,05 mm | |
| Protocol: | Analog - current |
SUBSEA
| Diameter: | ø 68 mm | |
| Output: | 0 to 20 mA or 4 to 20 mA | |
| Shaft : | ø 12 mm to ø 19,05 mm | |
| Protocol: | SSI |
