Heavy Duty Encoders


2RMHD

Diameter: 60 mm square
Resolution: up to 7,500 ppr
Shaft: ø 12 mm and 15 mm
Temperature: -40° C to 85° C (operating)
IP rating: 65

2RHDS

Diameter: 70 mm square
Resolution: up to 12,500 ppr
Shaft: ø 12 mm to 15 mm
Temperature: -40° C to 85° C (operating)
IP rating: 65 (67 & 68 option)

SCA115

Diameter: 115 mm
Resolution: up to 12,500 ppr
Shaft: ø 11 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

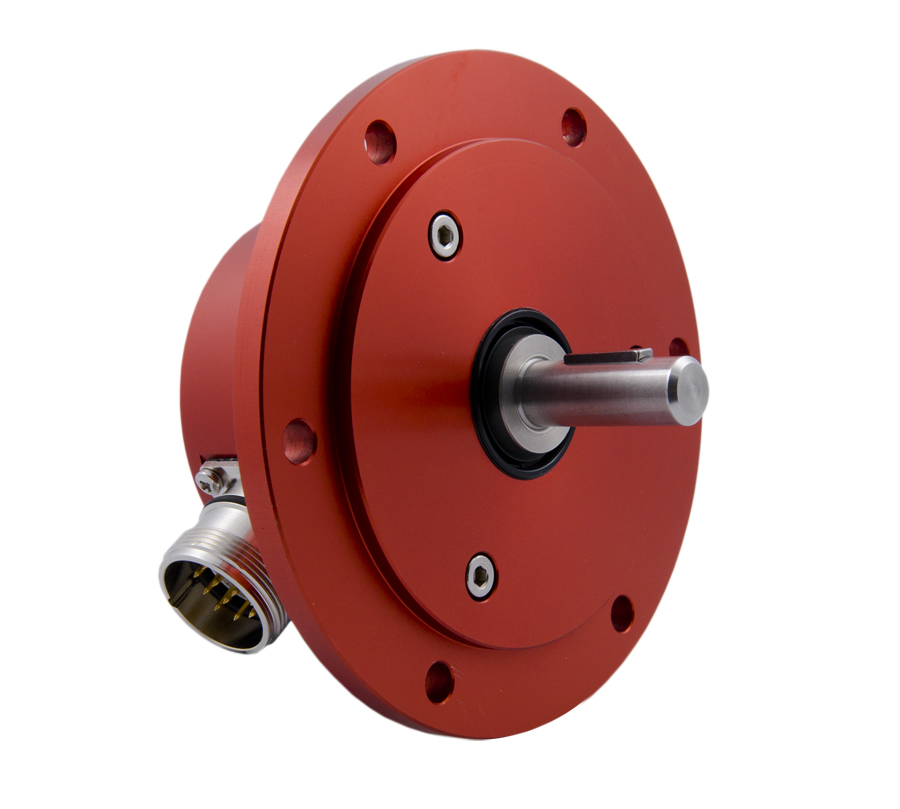

2RCI

Diameter: 115 mm
Resolution: up to 12,500 ppr
Shaft: ø 11 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66

SCH68B

through hollow bore
Diameter: 68 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 16 mm to 1 in
Temperature: -40° C to 85° C (operating)
IP rating: 65 (66 & 67 option)

SCH68F

Diameter: 68 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 20 mm and 1 in
Temperature: -40° C to 85° C (operating)
IP rating: 65 (66 & 67 option)

SCH68DW

through hollow bore w/ adaptor
Diameter: 68 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 20 mm and 1 in
Temperature: -40° C to 85° C (operating)
IP rating: 65 (66 & 67 option)

SCH68SUB (SUBSEA)

Diameter: 68 mm (hollow bore)
Resolution: up to 4096 ppr
Hollow Shaft: ø 20 mm and 1 in
Temperature: -10° C to 70° C (operating)
IP rating:: IP 68 to 6000 m depth

SCH80

Diameter: 80 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 16 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

SCH94

Cylindrical and cone - Screw mount
Diameter: 94 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 12 mm to 17 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 options)

SCH94DOL

Dual output (redundant electronic)
Diameter: 94 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 16 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

SCH94L

Deep hollow bore - Front mounted
Diameter: 94 mm
Resolution: up to 12,500 ppr
Hollow Shaft: ø 16 mm
Temperature: -40° C to 85° C (operating)
IP rating: 66 (65 & 67 option)

SCH120M

Magnetic
Length: 120 mm
Resolution: up to 8192 ppr
Temperature: -40° C to +105° C (operating)
IP rating: 66

SCH120M Encoder is designed for severe duty applications where performance is critical. Rugged and reliable, it is the encoder of choice for motor and drive applications operating in rough environmental conditions.


SCH98M

Hollow bore
Diameter: 98 mm
Resolution: up to 8192 ppr
Hollow Shaft: ø 12 mm to ø 17 mm
Temperature: -40° C to +105° C (operating)
IP rating: 66

SCH98M-01

Hollow bore
Diameter: 98 mm
Resolution: up to 8192 ppr
Hollow Shaft: ø 12 mm to ø 17 mm
Temperature: -40° C to +105° C (operating)
IP rating: 66
