Shaft
2REX-A-AN (Analog)
| Diameter: | 68 mm | |
| Output: | 0 - 20 mA or 4 - 20 mA | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Certifications: | Ex db IIC |
2REX-A-NA SSI
| Diameter: | 68 mm | |
| Resolution: | Up to 13 bits (Singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex db IIC |

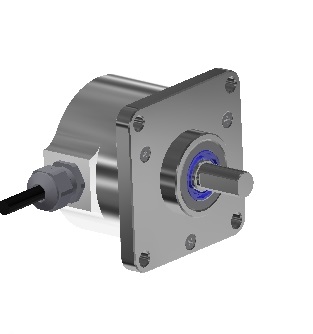

2QEX-A SSI
| Diameter: | 2.5 in or 2.65 in square | |
| Resolution: | Up to 13 bits (Singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| IP rating: | 67 | |
| Certifications: | Ex nA IIC |
2CEX-A SSI
| Diameter: | 68 mm | |
| Resolution: | up to 13 bits (singleturn) Up to 37 bits (Multiturn) | |
| Shaft: | ø 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex nA IIC |

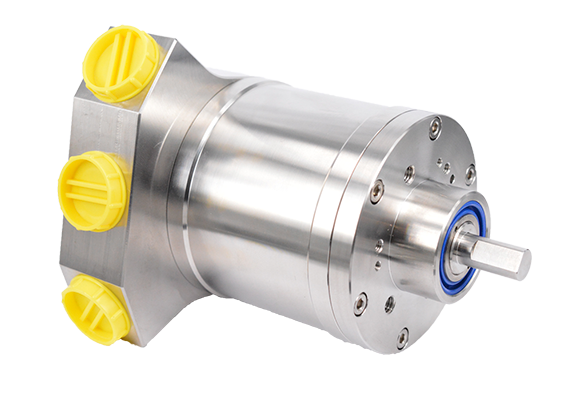

EXAG-A SSI
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SSI | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-A ProfiBus
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Shaft: | Ø 10 mm to Ø 12 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EX78-A Dual Output ProfiBus/Incremental
| Diameter: | 78 mm | |
| Resolution: | Up to 31 bits | |
| Shaft: | Ø 10 mm to Ø 12 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol : | ProfiBus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A ProfiBus
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A CANopen
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | CANopen | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A DeviceNet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | DeviceNet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A Dual Output ProfiBus/incremental
EXAG-A Dual Output ProfiBus/incremental| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus & Incremental | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A Ethernet Modbus with Cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Ethernet | |
| Certifications: | Ex db IIC |
EXAG-A ProfiBus with Cable
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | ProfiBus | |
| Certifications: | Ex db IIC |
EXAG-A Profinet
| Diameter: | 78 mm | |
| Resolution: | Up to 16 bits (Singleturn) Up to 30 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | Ehternet Profinet | |
| Certifications: | Ex db IIC Class I, Div.2, Zone 1 |
EXAG-A SIL2
Functional Safety| Diameter: | 78 mm | |
| Resolution: | Up to 13 bits (Singleturn) Up to 25 bits (Multiturn) | |
| Shaft: | 10 mm | |
| Temperature: | -40° C to 70° C (operating) | |
| Protocol: | SIL2 (Profisafe via Profinet) | |
| Certifications: | Ex db IIC, Class I, Div.2, Zone 1 |
