Standard Encoders
- Home
- Products
- Incremental
- Standard Encoders
SCA50
Formerly named 2R| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 12 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA50-SR
Formerly named 2RSR - Stainless Steel AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 67 (Option 69) |
SCA58
Formerly named 2RS| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA58-G
| Diameter: | 50 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
2RK
| Diameter: | 58 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
2R58
| Diameter: | 55 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 6 mm to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (67 option) |
SCA80
Formerly named 2RP| Diameter: | 80 mm | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
2Q
| Diameter: | 2.5 inch square | |
| Resolution: | up to 10,000 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 option) |
2RHIDS -encoder with measuring wheel
Encoder with measuring wheel| Diameter: | Dual shaft encoder | |
| Resolution: | up to 9,000 ppr | |
| Shaft: | ø 3/8 in | |
| Temperature: | -40° C to 75° C (operating) | |
| IP rating: | 64 | |
| Measuring wheel : | See accessories |
2RK-SA-IP69K
| Diameter: | 58 mm | |
| Resolution: | up to 12,500 ppr | |
| Shaft: | ø 1/4 in to 10 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 69K |
SCH50B
Formerly named 2RH (Through hollow bore)| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 6 mm and 8 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
SCH50F
Formerly named 2RHF| Diameter: | 50 mm | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 6 mm and 8 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |

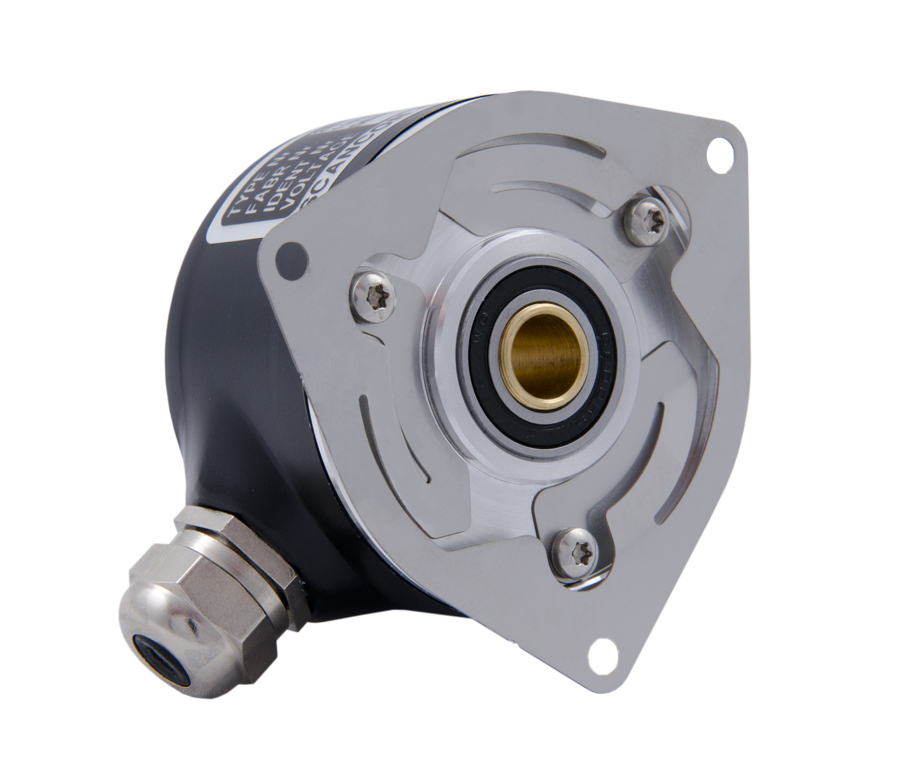

SCH50L
Formerly named 2RHL| Diameter: | 50 mm (through hollow bore) | |
| Resolution: | up to 12,500 ppr | |
| Hollow Shaft: | ø 6 mm and 8 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
SCH50I
Formerly named 2RHI| Diameter: | 50 mm (through hollow bore) | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 10 mm to 15 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 |
SCH50IB
Formerly named 2RHIB (through hollow bore)| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 3/8 in to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
SCH50IF
Formerly named 2RHIF| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 3/8 in to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 & 67 options) |
SCH50IB-SR
Stainless Steel - AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 8 mm to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 67 |
Stainless Steel
SCH50IF-SR
Formerly named 2RHIF-SR Stainless Steel - AISI 303| Diameter: | 50 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 8 mm to 16 mm | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | IP 67 |
Stainless Steel
SCH58B
through hollow bore| Diameter: | 58 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | Ø3/8 in to 5/8 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 option) |
SCH58F
| Diameter: | 58 mm | |
| Resolution: | up to 9,000 ppr | |
| Hollow Shaft: | ø 3/8 in to 5/8 in | |
| Temperature: | -40° C to 85° C (operating) | |
| IP rating: | 65 (66 option) |
